Type:

Drip Coffee Packing Machine Series

Product model:

C89

Product name:

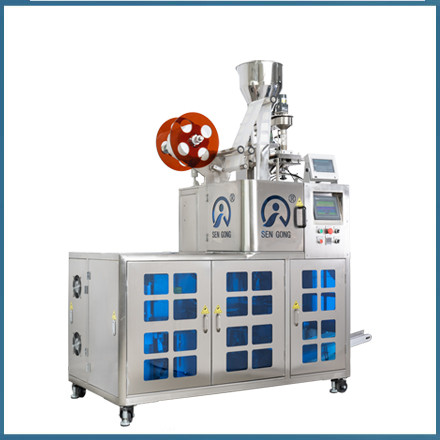

Ultrasonic Drip Coffee Inner and Outer Premade Pouch Packing Machine

 Bag type:

 4 side sealing Premade Pouch with / Without Round Corner

 Outer Bag size:

 120*100mm (L*W)

 Inner Bag size:

 L:50~75mm, W:50~90mm  (Filter paper width 180mm, Bag size: 90*74mm)

Packing speed:

30~40 bags/min

Filling range:

5~15g; accuracy:≦±0.1g/bag

Measuring:

Volumetric cup

Inner Packing material

Ultrasonic seal-able material: Drip coffee filter; Nylon filter mesh; PLA non-woven

Outer packing material

Heat seal-able material: Kraft paper/aluminum coating; PE/aluminum coating; PE film

Sealing method:

Ultrasonic sealing and cutting for inner bag; Outer Pouch by heat Sealing.

Power:

Single phase, 220V, 50HZ, 3.7KW

Air supply:

≧0.6Mpa (Can be equipped with Air Compressor)

Weight:

800KG

Dimension (L*W*H):

2000*1000*1900mm
