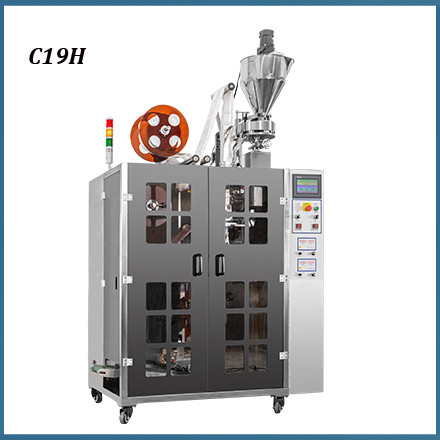

Product description：Drip coffee bag packing machine by ultrasonic sealing, for Japanese drip coffee bag, advanced version for you!
C19H drip coffee bag packing machine is suitable for drip coffee bag with outer envelope, available with coffee, tea leaves, herbal tea, health care tea, roots, and other small granule products.

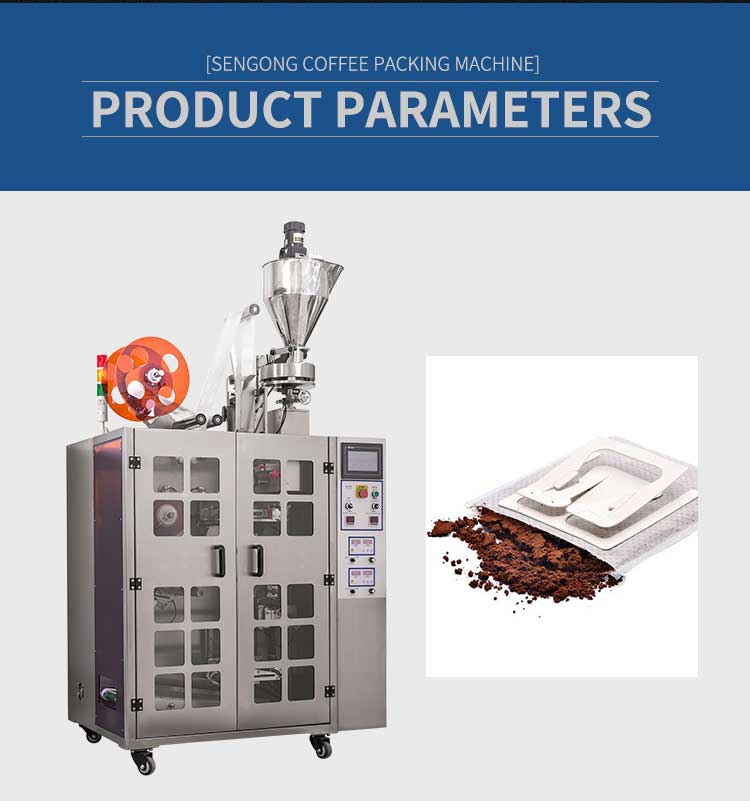

Machine type: | Drip Coffee Packaging Machine Series |
Machine model: | C19H |
Machine name: | C19H Automatic Ultrasonic Drip Coffee Bag Packing Machine with Outer Envelope |
Inner bag type: | Ultrasonic sealing |
Packing material: | Ultrasonic seal-able material for inner bag: Drip coffee filter; Nylon filter mesh Heat seal-able material for outer bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Feeding system: | Measuring cup filler |
Package range: | 5-15g,accuracy:±0.1g/bag |
Inner bag size: | L:50-75mm , W:50-90mm(Film width 200m,Bag size: 120*100mm) |
Outer bag size: | L:85-120mm,W:75-100mm(Filter paper width 180mm,bag size:90*75mm) |
Inner bag film width (180mm): | Bag size: L90mm*W75mm |
Outer bag film width(200mm): | Bag size: L120mm*W100mm |
Power supply: | Single phase, 220V, 50HZ, 3.7KW |
Air supply: | ≧0.6Mpa (Can be equipped with Air Compressor) |
Packing speed: | 40-60bags/min |
Machine weight: | 700KGS |
Machine dimension: | 1200*900*1900mm (L*W*H) |
Please kindly contact manufactuer for more details, Thank you!
