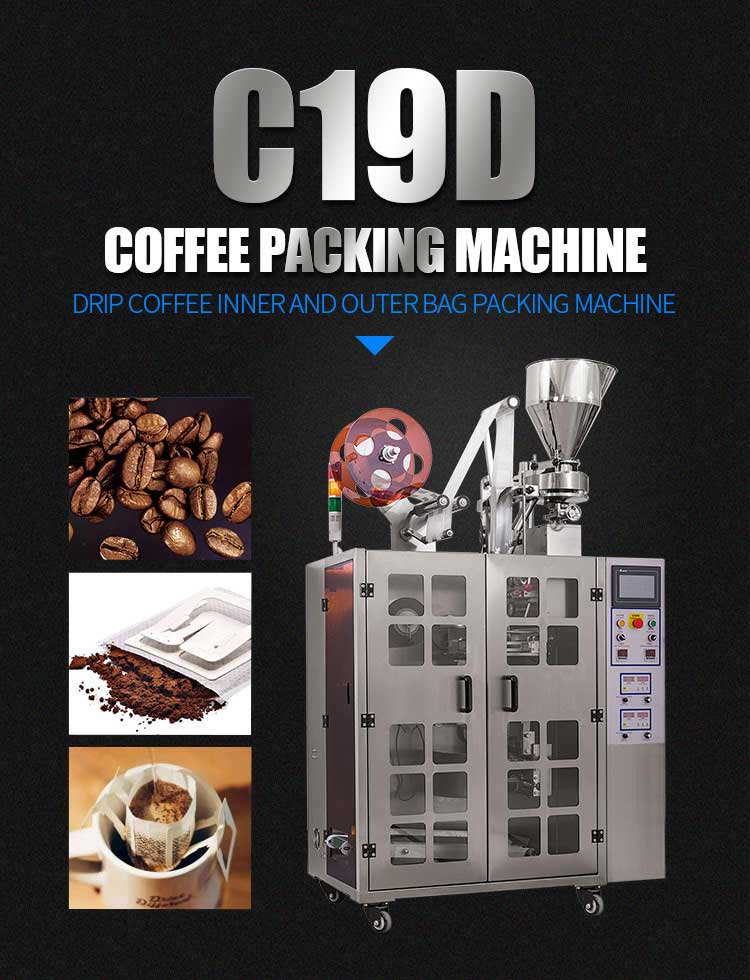

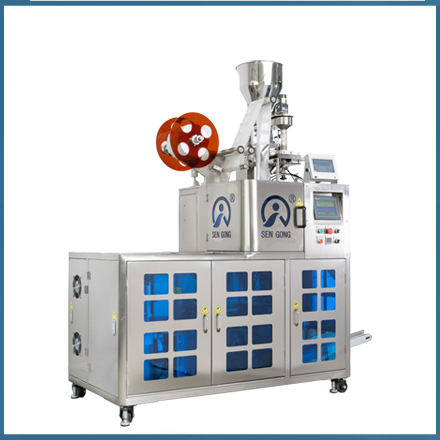

Product description：Drip coffee bag packaging machine from Xiamen Senong, produce drip coffee bag with outer wrap!

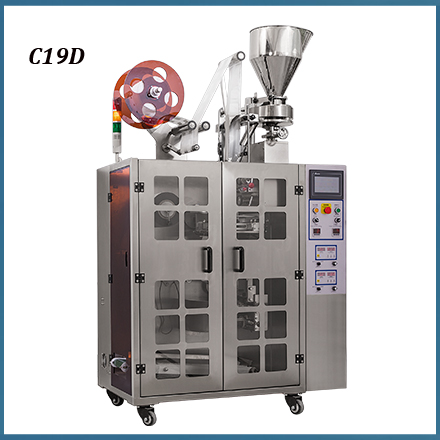

C19D drip coffee bag packaging machine is suitable for Drip coffee bag with outer envelope, available with Coffee, tea leaves, herbal tea, health care tea, roots, and other small granule products.

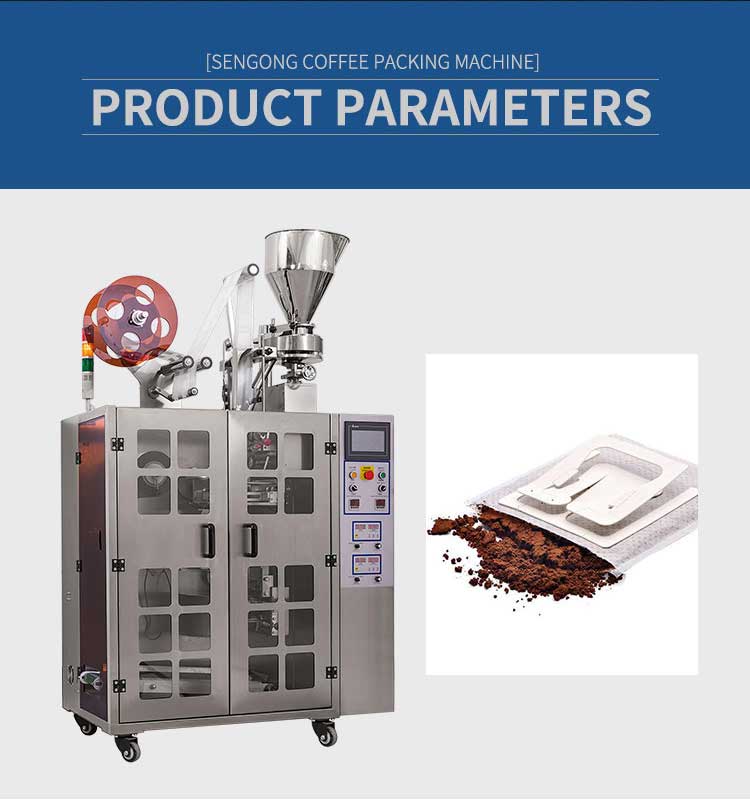

Technical data | |
Type: | Drip Coffee Packing Machine Series |
Product model: | C19D |
Product name: | C19D Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine |
Bag type: | 3 side sealing |
Outer Bag size: | L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm) |
Inner Bag size: | L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm) |
Packing speed: | 30~45 bags/min |
Filling range: | 5~15g; accuracy:≦±0.1g/bag |
Measuring: | Volumetric cup |
Inner Packing material | Ultrasonic seal-able material: Drip coffee filter; Nylon filter mesh; PLA non-woven |
Outer packing material | Heat seal-able material: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Sealing method: | Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing. |
Power: | Single phase, 220V, 50HZ, 3.7KW |
Air supply: | ≧0.6Mpa (Can be equipped with Air Compressor) |
Weight: | 600KG |
Dimension (L*W*H): | 1200*900*1900mm |
