Type:

Drip Coffee Packing Machine Series

Product model:

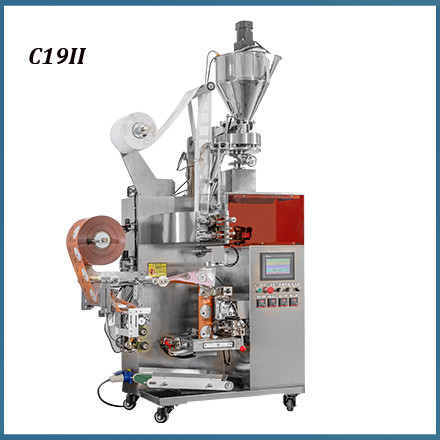

C19II

Product name:

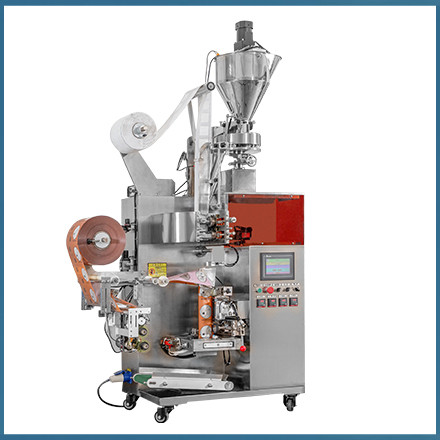

Drip Coffee Inner and Outer Bag Packing Machine

Bag type:

 3 side sealing

Outer Bag size:

 L:85~120mm,W:75~100mm  (Film width 200mm, Bag size: 120*100mm)

Inner Bag size:

L:50~75mm, W:50~90mm  (Filter paper width 180mm, Bag size: 90*75mm)

Packing speed:

40~70 bags/min

Filling range:

5~15g; accuracy:≦±0.1g/bag

Measuring:

Volumetric cup

Inner Packing material

Filter paper

Outer packing material

Kraft paper/aluminum coating; PE/aluminum coating; PE film

Sealing method:

Heat Sealing and cutting

Air supply:

≧0.6Mpa (Can be equipped with Air Compressor)

Power:

Single phase, 220V, 50HZ, 3.7KW

Weight:

450KG

Dimension(L*W*H):

1200*900*1900mm
