Machine model:

HQ450-F

Machine name:

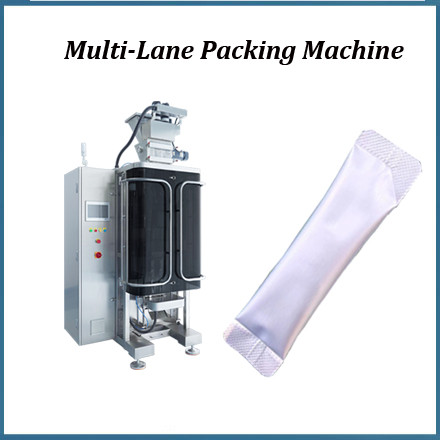

Multi-lane stick packing machine for powder

Control System:

PLC + Touch screen

Packing speed:

Max 60 bag/minutes per line

Packing range:

5-40 ml per bag for powder

Lanes:

2-12 Lanes

Packing material & Thickness:

Heat seal-able packaging composite film materials, with thickness between 50 - 100micon, including: PE/aluminum coating; PE film

Diameter of film:

Inner diameter of film: 76mm / Outer diameter of film: Max 400mm

Maximum width of film:

Max 250mm for film; and max 120mm for single bag.

Maximum length of bag:

180mm long / 3.8 cm wide

 Feeding system:

Auger for powder

Cutting way:

Flat cutting with notch / Zigzag cut / Round corner cut / Special shape cut;

Noise Levels of machine:

About 78dB(A)

Power supply:

Single phase, 220V, 50HZ, 3.7KW

Air supply and Air consumption:

0.6-0.8Mpa; / Air consumption: 0.8m³/min

Machine Material & Weight:

SUS304 Stainless steel for machine body & 1000KGS

Machine dimension:

1260*1550*2500mm (L*W*H)

Operating environment:

Stable flat floor, waterproof with sunshade, less than 70℃ temperature
