Machine model:

SG400

Machine name:

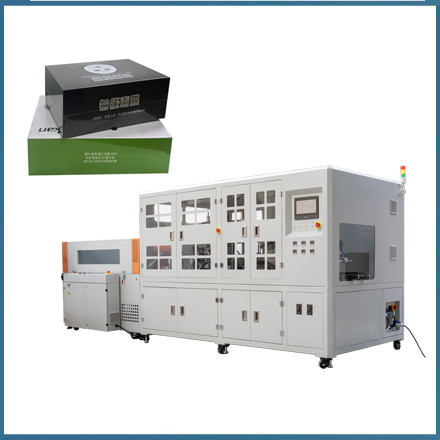

Automatic Box Shrink Wrapping Machine

Control System:

PLC + Touch screen

Packing speed:

 600 - 720 box/hour per

Packing range:

Length of Box /L: 100mm-400mm

Width of Box/W: 90mm-350mm

Height of Box/H: 30mm-150mm

Note: The box needs to meet W+H ≦400mm

Packing material & width:

POF cross-linked shrink film

Film broadband needs to meet≧L+H+50～80mm

Working height:

950mm height of outlet for Box

Temperature of sealing:

170～260°C

Power supply:

Single phase, 220V, 50HZ, 20A

Power:

5.5KW for wrapping machine / 16kw for Heat Shrinking Machine

Air supply and Air consumption:

0.5-0.7Mpa; / Air consumption: 0.8m³/min

Air compressor recommendation:

10kw screw type Air Compressor machine + 1 cubic Gas Storage Tank

Machine Material & Weight:

SUS304 Stainless steel for machine body & 2000KGS

Machine dimension:

2780*1620*1860mm (L*W*H) for Wrapping Machine

1800*1050*1310mm (L*W*H) for Heat Shrinking Machine
