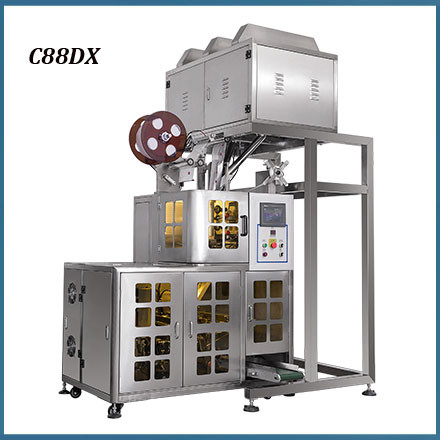

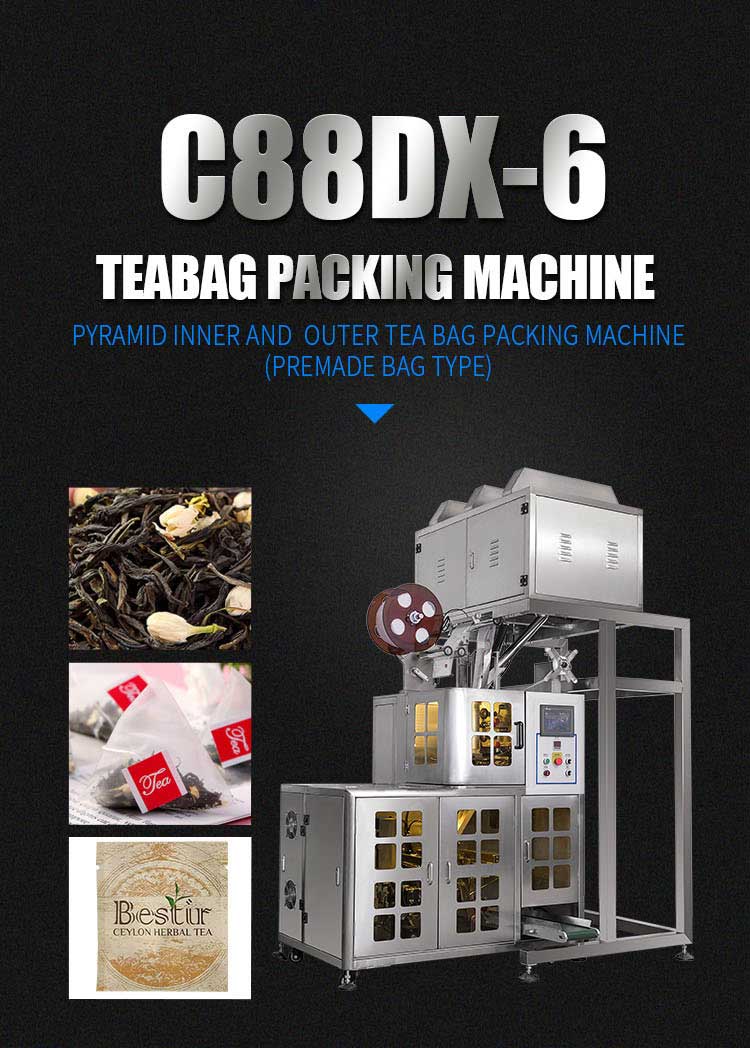

Product description：C88DX Pyramid tea bag packaging machine with outer premade pouch from Xiamen Sengong can make Inner flat tea bag and triangle tea bag into premade pouch!
C88DX Pyramid tea bag packaging machine with premade pouch suitable for inner pyramid bag with outer pre-made pouch, for packing products from mall granules to big granules, such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, Rose Tea, Ginseng, etc.

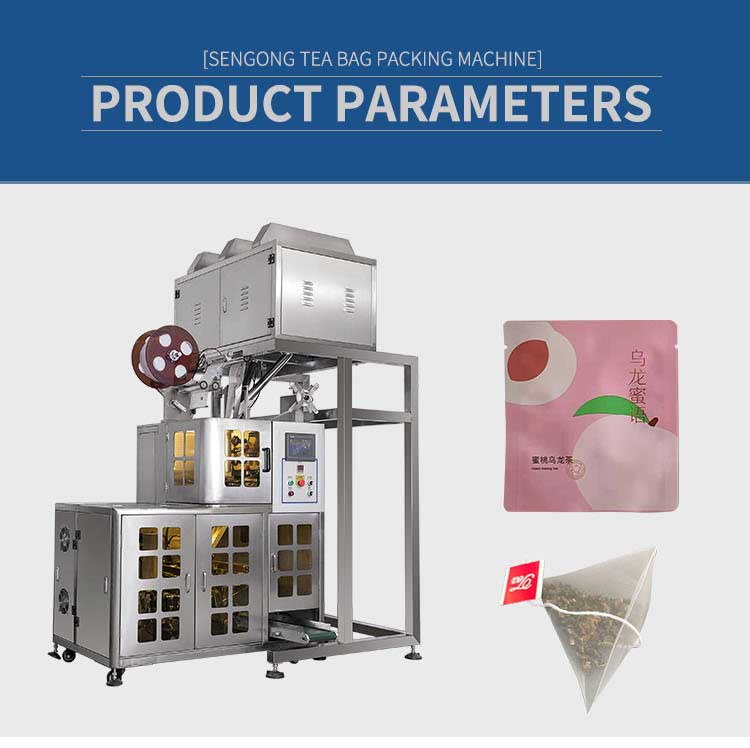

Technical data | |
Type: | Tea Bag Packing Machine Series |
Product model: | C88DX |
Product name: | Automatic Pyramid Inner Bag and Outer Pre-made Pouch Packing Machine |
Packing Material: | Inner bag:Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA Outer Bag: Kraft paper/aluminum coating Pouch; PE/aluminum coating Pouch; PE Pouch |
Filling range: | 1~10g/bag, accuracy:≦±0.1g/bag (Depends on products) |
Filling method: | 6 weighers of Electric scale that can work independently (No. Of weighers can be customized) |
Inner Sealing length: | 50, 60, 70mm |
Outer bag size: | Flat bag: Bag Width: 70-80mm Bag Length: 90-100mm |
Sealing method: | Inner bag: Sealing and cutting by ultrasonic Outer bag: Sealing and cutting by heat |
Bag type: | Triangle shaped bag: Inner pyramid bag with outer triangle pouch |
Quantity of sealing device: | 2 sets |
Packing speed: | 30-40 bags/min |
Motor Power: | 220V, 50HZ, 3kW / 1.2kW |
Air supply: | ≧0.6Mpa (Can be equipped with air compressor) |
Weight: | 600KG / 400KG |
Dimension: | 2000*1350*2450mm(L*W*H) / 1200*900*1580 mm |
Please kindly contact manufactuer for more details, Thank you!
