Type:

Tea Bag Packing Machine Series

Product model:

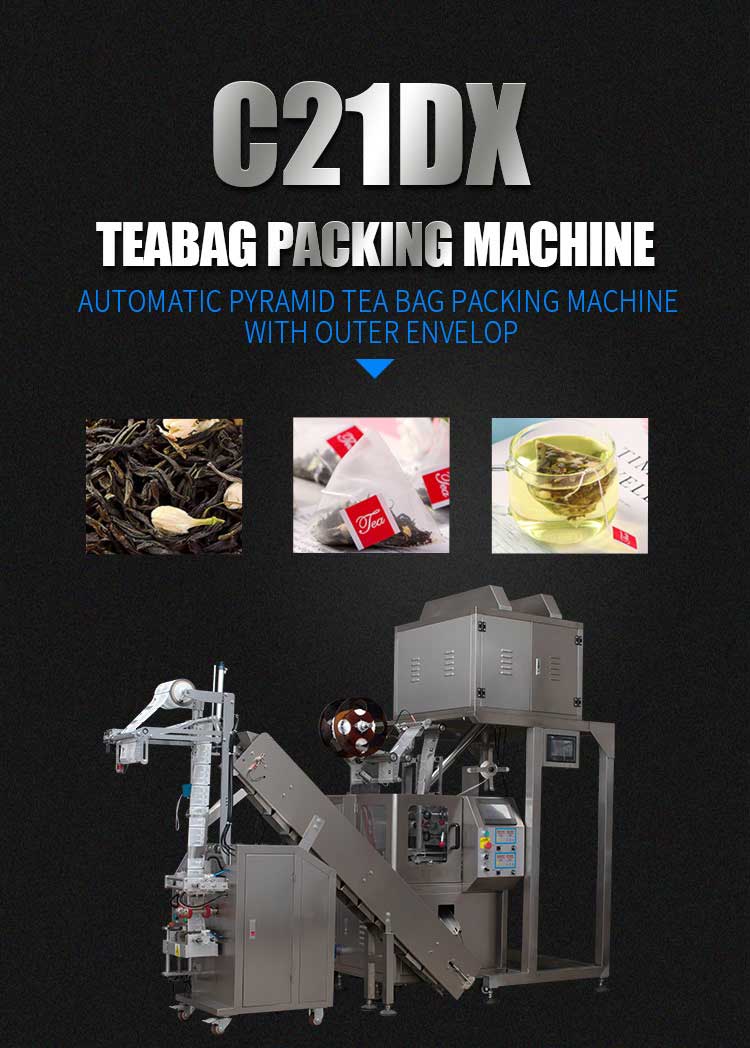

C21DX

Product name:

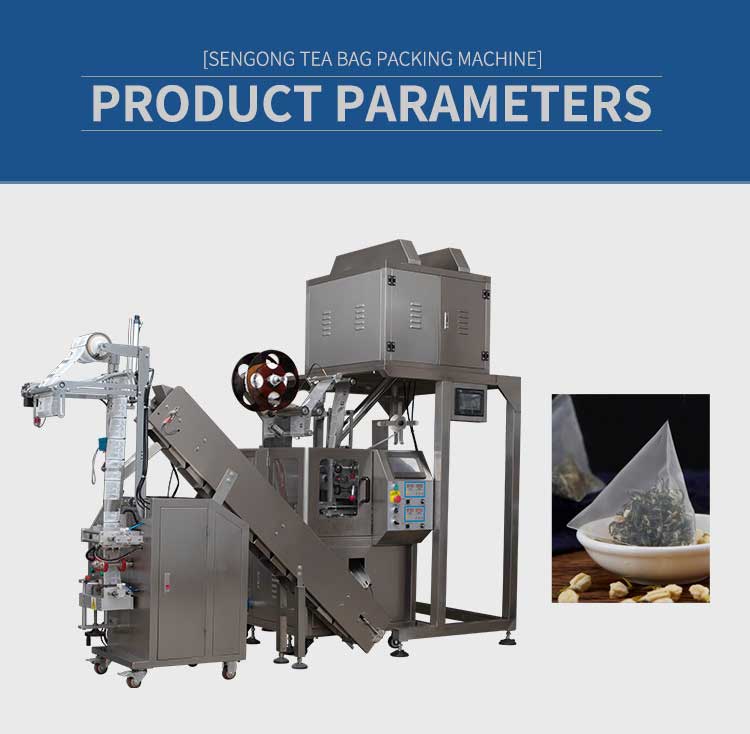

Automatic Pyramid Tea Bag Packing Machine with outer envelope

Packing Material:

Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material.

Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film

Filling range:

1~10g/bag, accuracy:≦±0.1g/bag

Packing roll width:

140mm, 160mm, 180mm

Sealing length:

50, 60, 70, 80mm

Outer bag size

W: 80-100mm; L: 90-120mm

Sealing method:

Inner Pyramid Bag by ultrasonic sealing and cutting

Bag type:

1. Inner pyramid bag with outer envelope

2. Single flat inner bag

3. Single pyramid inner bag

Quantity of sealing device:

2 sets

Packing speed:

30-45 bags/min

Motor Power:

220V, 50HZ, 1.5KW

Air supply:

≧0.6Mpa (Can be equipped with air compressor)

Weight:

500KG

Dimension:

3000*900*2300mm(L*W*H)
