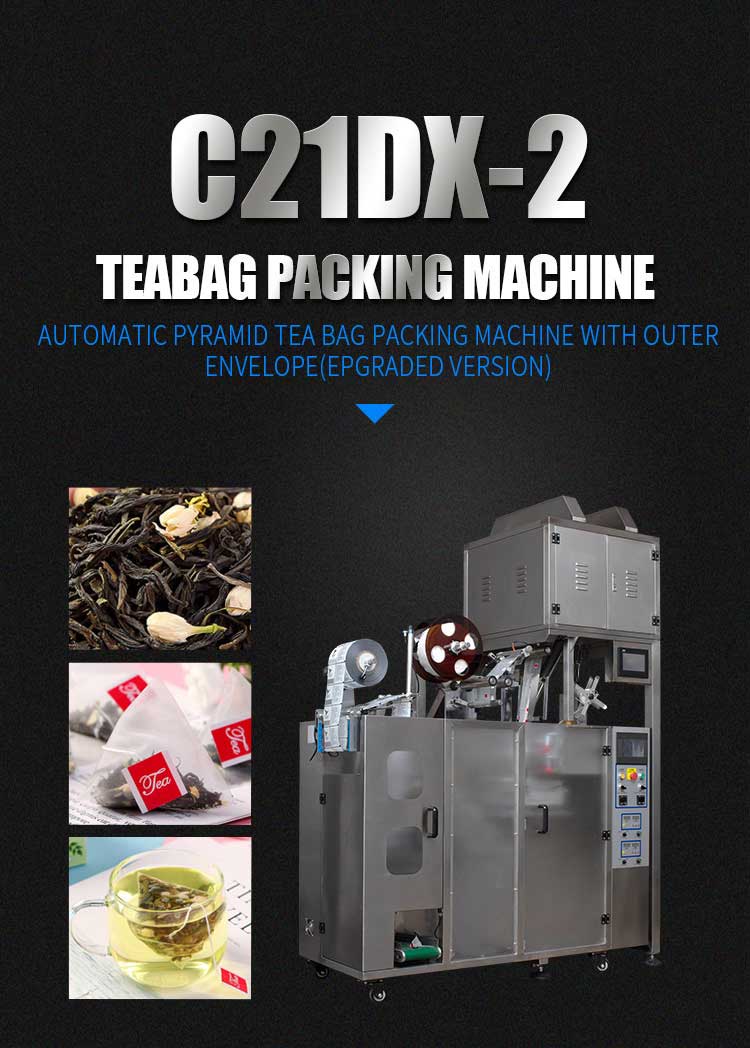

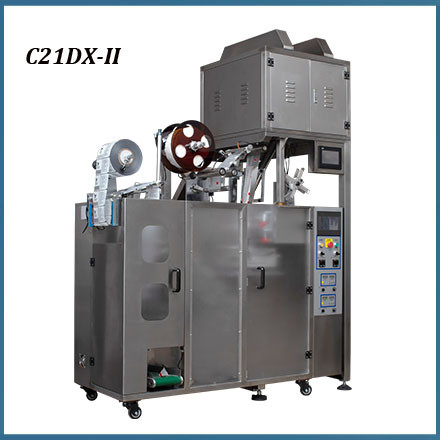

Product description：This C21DX-II Triangle tea bag sealing and packing machinery is used to pack triangle tea bag with outer envelope, working with pla mesh, nylon tea bag with thread and tag.
C21DX-II Triangle tea bag sealing and packing machinery is suitable for inner pyramid bag with outer envelope, and for packing multi-material product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.

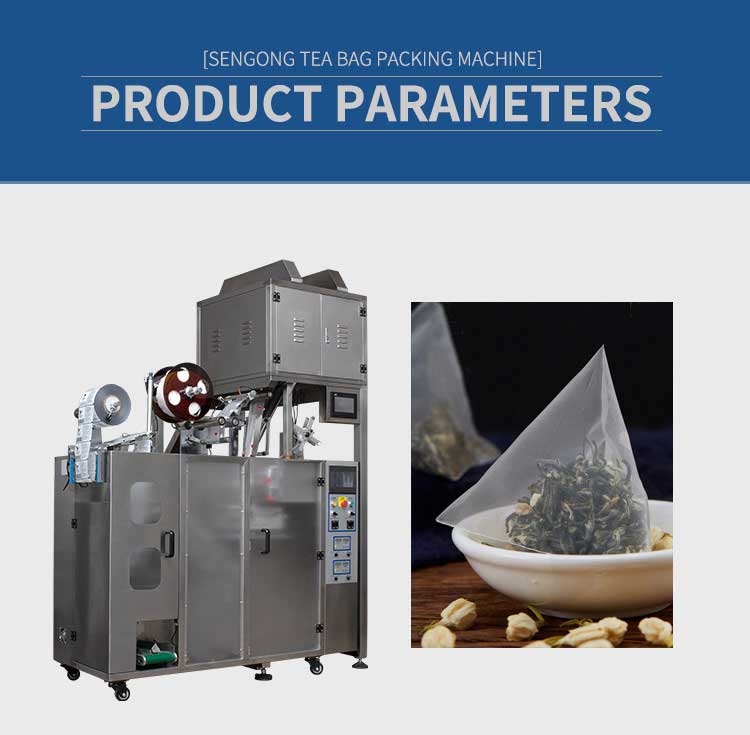

Technical data | |
Type: | Tea Bag Packing Machine Series |
Product model: | C21DX-2 |
Product name: | Automatic Pyramid Tea Bag Packing Machine with outer envelope |
Packing Material: | Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material. Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Filling range: | 1~10g/bag, accuracy:≦±0.1g/bag |
Filling method: | Electric scale |
Packing roll width: | 140mm, 160mm, 180mm |
Sealing length: | 50, 60, 70, 80mm |
Outer bag size | W: 80-100mm; L: 90-120mm |
Sealing method: | Inner Pyramid Bag by ultrasonic sealing and cutting |
Bag type: | Inner pyramid bag with outer envelope |
Quantity of sealing device: | 2 sets |
Packing speed: | 35-50 bags/min |
Power: | Single phase, 220V, 50HZ, 1.5KW |
Air supply: | ≧0.6Mpa (Can be equipped with air compressor) |
Weight: | 550KG |
Dimension: | 3000*900*2300mm(L*W*H) |
