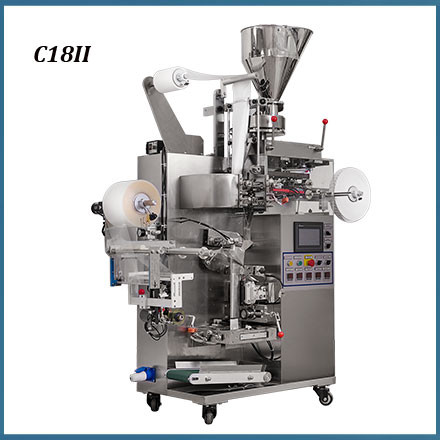

Product description：This automatic teat bag packing machine is used to produce inner herbal tea with outer envelope, and thread and tag, as an upgraded version!
C18II inner and outer tea bag packing machine is suitable for inner bag and outer envelope, and for packing small granular products such as tea leaf, medicinal tea and health care tea.

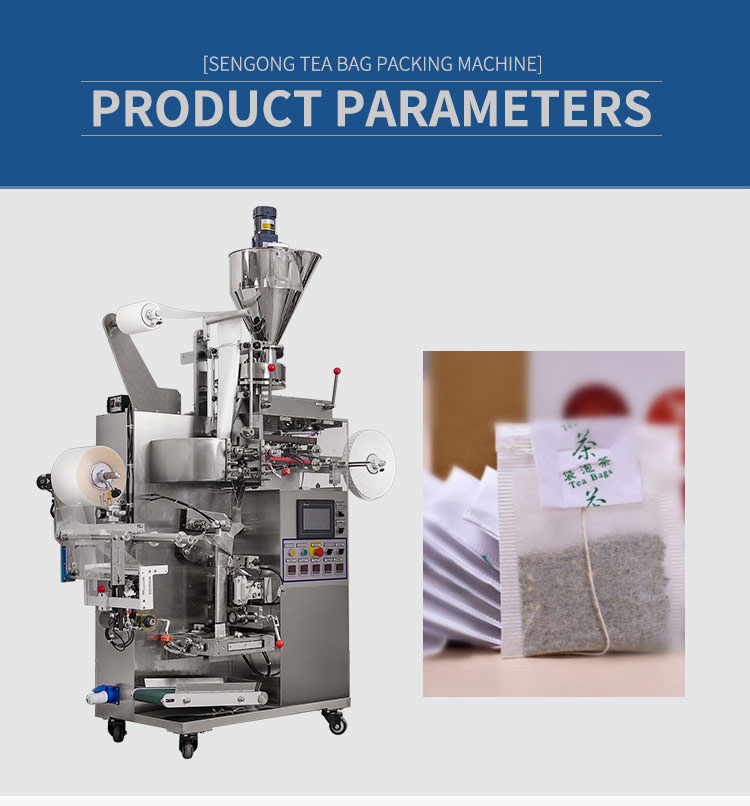

Technical data | |
Type: | Tea Bag Packing Machine Series |
Product model: | C18II |
Product name: | Automatic Tea Bag Packing Machine with Thread, Tag and Outer Envelope |
Packing Material: | Paper/plastic,Plastic/plastic,Paper/aluminum,Plastic/aluminum, Filter paper, Thread, Paper tag |
Measuring: | Volumetric cup filler with bender |
Packing speed: | 40-60bag/min |
Filling range: | About 3~15ml |
Inner bag size: | L:50-70mm, W:40-80mm |
Outer bag size: | L:70-120mm, W:60-90mm (Note: Outer Bag is with photoelectric Sensor to control the Cutting) |
Tag size: | L:20-24mm, W:40-55mm - Standard size: 45mm or 50mm |
Thread length | 155mm |
Air supply: | ≧0.6Mpa (Can be equipped with Air Compressor) |
Power: | 220V/50HZ/3.7KW |
Weight: | 500KG |
Dimension(L*W*H): | 1250*700*1800mm |
