Type:

Tea Bag Packing Machine Series

Product model:

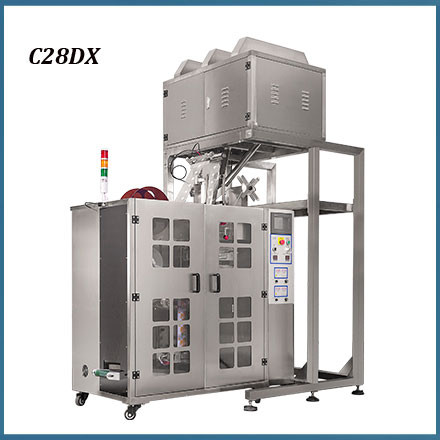

C28DX

Product name:

Automatic Pyramid / Flat Inner Bag and Outer Bag Packing Machine

Packing Material:

Inner bag:Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA

Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film

Filling range:

1~10g/bag, accuracy:≦±0.1g/bag (Depends on products)

Filling method:

6 weighers of Electric scale that can work independently

(No. Of weighers can be customized)

Inner Sealing length:

53, 58, 63, 68mm

Outer bag size:

Bag Width: 80-100mm   Bag Length: 90-120mm

Film width: 160mm, 180mm, 200mm

Sealing method:

Inner bag: Sealing and cutting by ultrasonic

Outer bag: Sealing and cutting by heat

Bag type:

One machine can pack 4 bag type:

1.Inner pyramid bag with outer envelope

2.Inner flat bag with outer envelope

3.Single pyramid tea bag (With/without thread/tag)

4.Flat tea bag (With/without thread/tag)

Quantity of sealing device:

2 sets

Packing speed:

40-55 bags/min

Motor Power:

220V, 50HZ, 3KW

Air supply:

≧0.6Mpa (Can be equipped with air compressor)

Weight:

750KG

Dimension:

1500*900*2800mm(L*W*H)
