Product description：Tea bag film roll tagging machine for you to make tea bag film

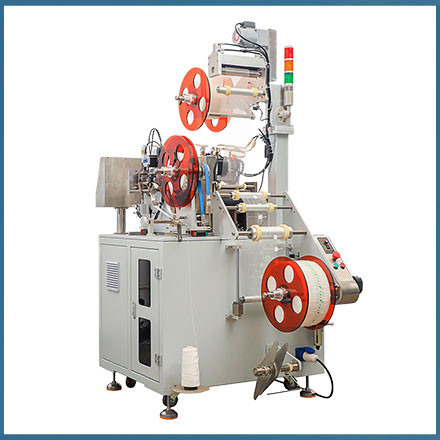

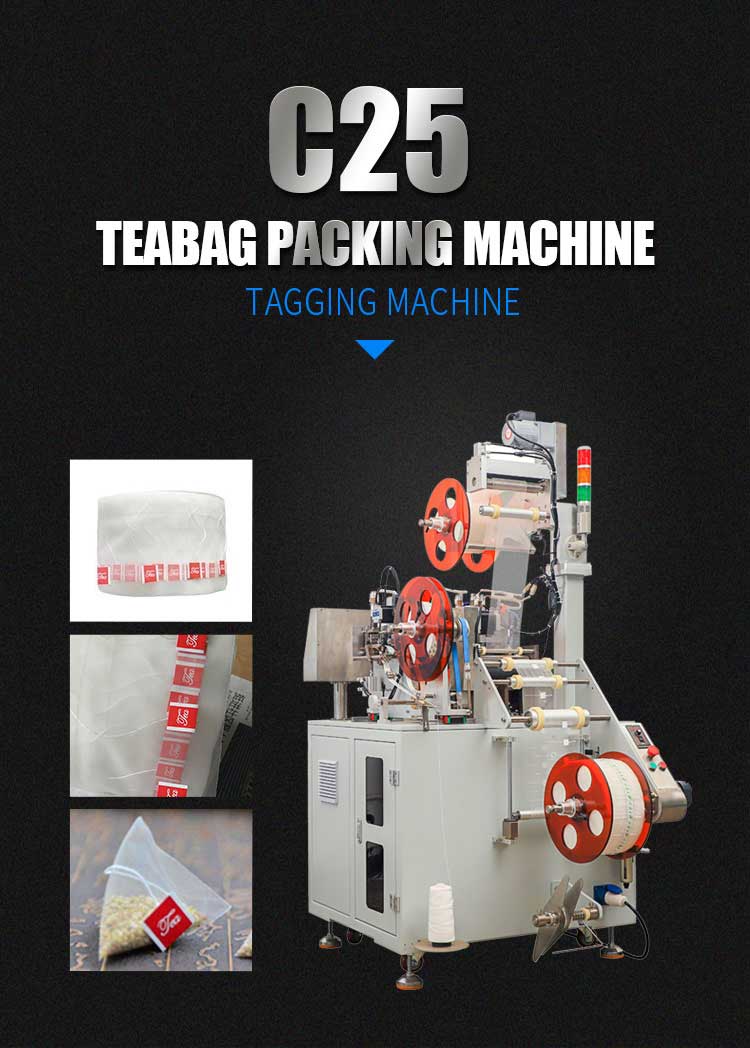

C25 Tea bag film roll tagging machine is used to add the tag and thread to roll of packing film automatically.

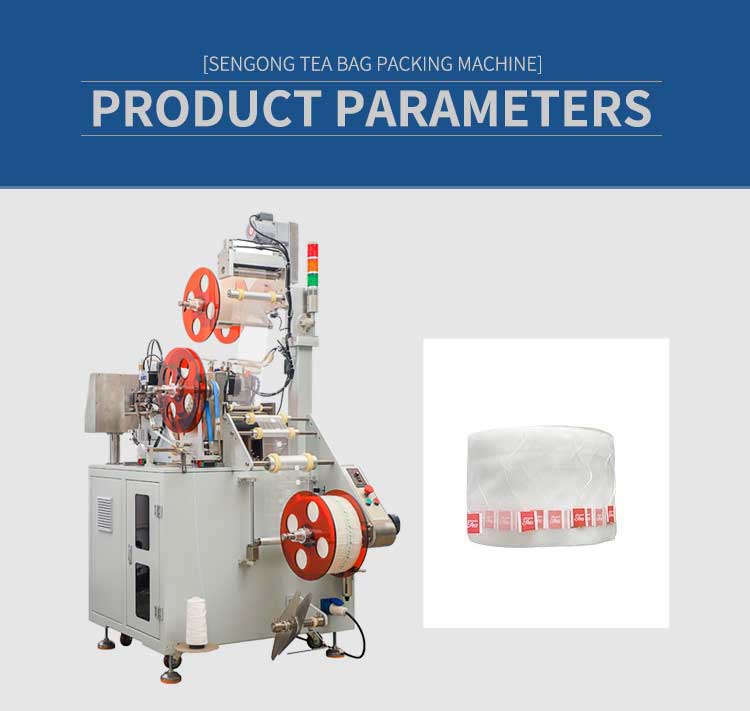

Technical data | |
Product model: | C25 |
Product name: | Automatic Tagging Machine |
Speed: | 60-90 tag/min |
Material: | Nylon mesh, PET, Non-woven, PLA mesh |
Film width: | 120mm, 140mm, 160mm |
Tag size: | 20*20mm |
Thread length: | 110 - 170mm |
Tag Film width: | 20mm (Film needs to meet requirements) |
Film inner diameter | Φ76㎜ |
Film outer diameter | ≤Φ400㎜ |
Tagging method: | By ultrasonic |
Ultrasonic device: | 4 Sets |
Air supply required: | ≥0.6Mpa |
Power: | AC220V/50HZ, 2.0 kW |
Dimension: | L 1200×W 1200×H 1800(㎜) |
Weight: | About 500kg |
Operation: | By 1 person |
Qualified rate: | ≥99.8% |
